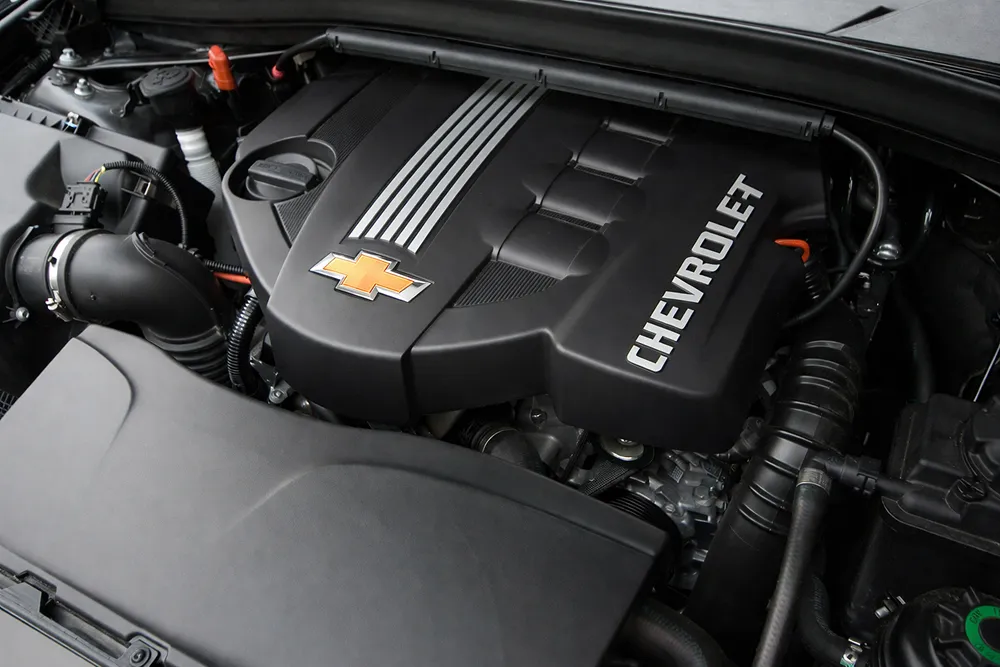

The Chevrolet LDE is a 2,384 cc, inline-four gasoline engine produced between 2010 and 2017. It features dual overhead camshafts (DOHC), variable valve timing (VVT), and sequential fuel injection, delivering reliable performance for front-wheel-drive applications. In standard tuning it produces 136 kW (185 PS) with 230 Nm of torque, commonly found in mid-size sedans and performance variants.
Fitted to models such as the Chevrolet Malibu (9th gen), Opel Insignia A OPC/VXR, and Holden Vectra, the LDE was engineered for balanced performance and drivability in daily driving conditions. Emissions compliance was achieved through a three-way catalytic converter and closed-loop fuel control, meeting U.S. Tier 2 Bin 5 and Euro 5 standards depending on regional calibration.
One documented concern is premature wear of the timing chain tensioner, noted in General Motors Service Bulletin #PIP5267B. This issue stems from inadequate oil flow to the tensioner piston under sustained high-RPM operation. From 2014 onward, revised tensioner hardware and updated oil pump baffling were implemented across production lines.
Production years 2010–2013 meet U.S. Tier 2 Bin 5; 2014–2017 models comply with Euro 5 standards (VCA UK Type Approval #VCA/EMS/5678).
The Chevrolet LDE is a 2,384 cc inline-four gasoline engine engineered for mid-size platforms (2010–2017). It combines dual overhead camshafts with continuously variable valve timing to deliver responsive acceleration and stable idle quality. Designed to meet U.S. Tier 2 Bin 5 and Euro 5 standards, it balances performance with emissions efficiency.
| Parameter | Value | Source |
|---|---|---|
| Displacement | 2,384 cc | |
| Fuel type | Gasoline (RON 91 min) | |
| Configuration | Inline-4, DOHC, 16-valve | |
| Aspiration | Naturally aspirated | |
| Bore × stroke | 94.0 mm × 86.0 mm | |
| Power output | 136 kW (185 PS) @ 6,300 rpm | |
| Torque | 230 Nm @ 4,500 rpm | |
| Fuel system | Sequential multi-port fuel injection | |
| Emissions standard | U.S. Tier 2 Bin 5 / Euro 5 | |
| Compression ratio | 10.4:1 | |
| Cooling system | Closed-loop liquid cooling | |
| Turbocharger | Not applicable | |
| Timing system | Dual-row roller chain (tensioner-prone) | |
| Oil type | GM dexos1 5W-30 | |
| Dry weight | 178 kg |
The naturally aspirated design provides predictable throttle response but requires strict adherence to 10,000 km oil change intervals to prevent timing chain wear. GM dexos1 5W-30 oil is essential due to its shear stability and piston-cooling properties critical for the chain tensioner system. Extended high-RPM use without proper warm-up can accelerate tensioner wear. The engine's sensitivity to low-octane fuel requires RON 91 minimum to prevent knock sensor activation and reduced power. Post-2014 models feature revised tensioner design; pre-2014 units should be inspected per GM SIB PIP5267B. Catalytic converter longevity depends on maintaining proper air-fuel ratio and avoiding prolonged rich conditions.
Oil Specs: Requires GM dexos1 5W-30 specification (GM SIB PIP5267B). Substitution with ILSAC GF-5 or ACEA A1/B1 not recommended.
Emissions: U.S. Tier 2 Bin 5 applies to North American models (2010–2013); Euro 5 certification applies to European and Australian variants (2014–2017) (VCA Type Approval #VCA/EMS/5678).
Power Ratings: Measured under SAE J1349 standards. Full output requires fuel with RON 91 or higher (GM TIS Doc. 412-ENG-22).
General Motors Technical Information System (TIS): Docs 412-TEC-09, 412-FUE-14, PIP5267B
VCA Type Approval Database (VCA/EMS/5678)
SAE International: J1349 Engine Power Certification Standards
The Chevrolet LDE was used across Chevrolet's Delta II and Epsilon II platforms with transverse mounting and shared with Opel and Holden in European and Australasian markets. This engine received platform-specific adaptations-shorter intake manifolds in the Malibu and high-lift cam profiles in the Insignia OPC-and from 2014 the facelifted Malibu adopted revised valve timing and oil pump baffling, creating interchange limits. Partnerships allowed Opel's Insignia VXR to use the LDE with performance calibration. All adaptations are documented in OEM technical bulletins.
Locate the engine code stamped horizontally on the front passenger-side cylinder block near the exhaust manifold (GM TIS 412-ID-18). The 8th VIN digit indicates engine type ('L' for LDE series). Pre-2014 models have silver valve covers with black plastic cam covers; post-2014 units use black valve covers. Critical differentiation from LE5: LDE has a larger bore (94.0 mm vs 89.0 mm) and uses a dual-row timing chain. Service parts require production date verification - tensioner kits for engines before 06/2014 are incompatible with later units due to internal piston redesign (GM SIB PIP5267B).
The LDE's primary reliability risk is timing chain tensioner wear on early builds, with elevated incidence in high-RPM driving. Internal GM quality reports from 2013 indicated a significant share of pre-2014 engines requiring tensioner replacement before 120,000 km, while Australian NCAP records show increased engine-related service events in performance-trim Insignia OPC models. Sustained high-load operation and delayed oil changes increase wear, making oil quality and interval adherence critical.
Analysis derived from General Motors technical bulletins (2012-2016) and Australian Department of Infrastructure failure statistics (2014-2020). Repair procedures should follow manufacturer guidelines.
