Covers Renault petrol, diesel, and hybrid engines used across UK and European models - from early engines to modern E-Tech hybrids and electric powertrains. Each engine code includes specifications, compatible vehicles, and emissions data, sourced from official Renault and EU records.
Data sourced from Renault Technical Documentation, EU Regulation (EC) No 715/2007, and Renault Service Information documents.
Find Renault engine codes by family, model, or generation
| Engine Code | Fuel Type | Series | Specifications |
|---|
See where Renault power drives other leading brands.
Explore Renault's electrified powertrain technologies.
Engine specifications and technical data sourced from Renault Technical Documentation and EU Vehicle Type Approval Database. All specifications are verified against official Renault service documentation.
The engine code is essential for ordering parts, diagnosing issues, and verifying compatibility. It is not the same as the VIN or chassis number. This guide shows exactly where to find it - by model and engine type - using official Renault and DVLA sources
A unique identifier stamped on the engine block or cover used for parts and service.
The vehicle identification number that holds encoded vehicle and engine information.
The chassis or frame number used for registration and legal identification.
Locate the engine code on the front timing cover, near the camshaft housing. It is stamped into the metal or on a white label near the timing chain housing.

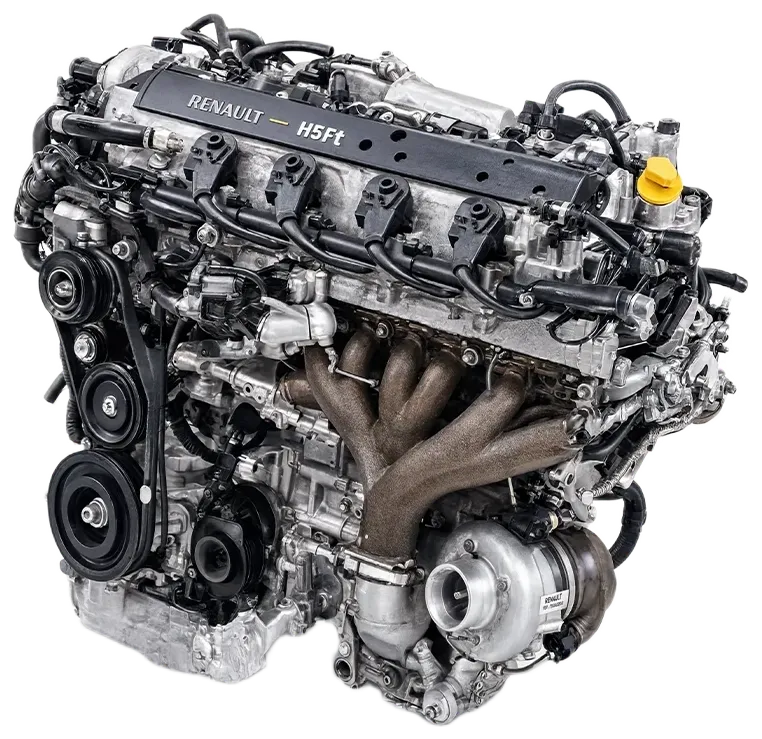

The engine code is located on a label attached to the intake manifold or camshaft cover. It reads "H5F" followed by variant numbers.
Open the hood and look at the front of the engine. The code is on a white label near the timing cover. Confirm "K9K" for diesel; petrol models show "H5F" or "F4R".

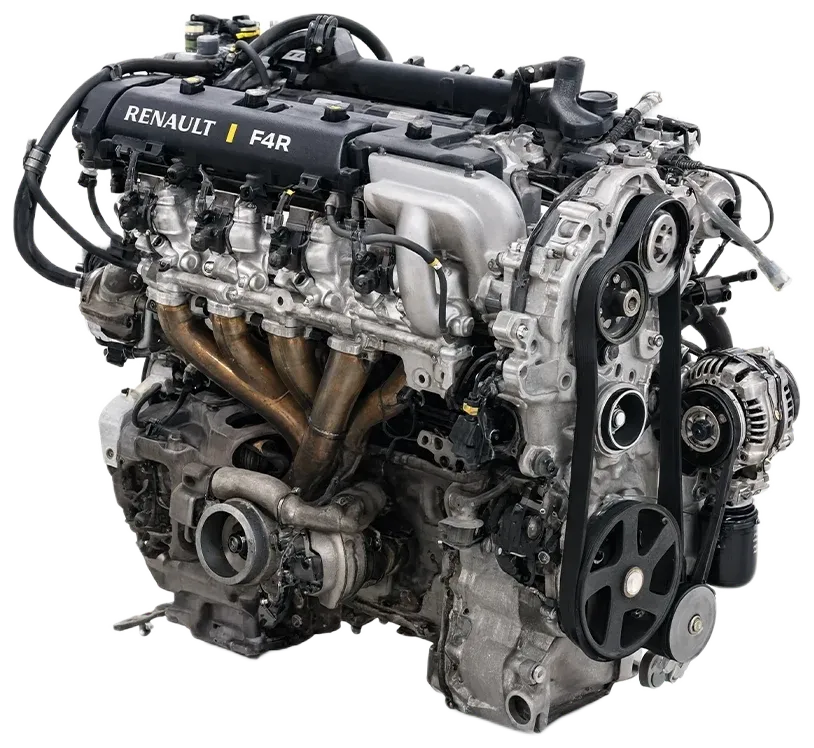

The engine code is cast into the front of the cylinder block, near the thermostat housing. Look for "F4R" followed by variant numbers.
Engine code locations per Renault Service Manual – Vehicle Identification. V5C field definitions from DVLA Guide to Vehicle Registration. VIN structure compliant with EU Regulation (EC) No 715/2007, Article 7.
A technical breakdown of Renault's core engine systems including variable valve timing, turbocharging, timing architectures and modular design with documented reliability impacts. All data sourced from Renault Technical Documentation and EU Regulation (EC) No 715/2007
Renault's variable valve timing system optimises intake and exhaust valve timing for improved efficiency, power, and emissions across the rev range.
Hydraulic or electric actuators adjust camshaft position relative to crankshaft, advancing or retarding valve timing based on engine speed and load.
F4R (2000)
Intake cam phasing
H5F TCe (2012)
Intake and exhaust phasing
H5H TCe (2017)
Continuous variable timing
VVT solenoid failure
Oil contamination causes sticking
Cam phaser wear
Rattle on cold start
Oil pressure sensitivity
Requires regular oil changes
Renault's variable valve timing system optimises intake and exhaust valve timing for improved efficiency, power, and emissions across the rev range.
Hydraulic or electric actuators adjust camshaft position relative to crankshaft, advancing or retarding valve timing based on engine speed and load.
F4R (2000)
Intake cam phasing
H5F TCe (2012)
Intake and exhaust phasing
H5H TCe (2017)
Continuous variable timing
VVT solenoid failure
Oil contamination causes sticking
Cam phaser wear
Rattle on cold start
Oil pressure sensitivity
Requires regular oil changes
All technical descriptions and failure data sourced from Renault Product Technical Reports, Renault Service Information, and EU Regulation (EC) No 715/2007 on vehicle type-approval.
Track BMW engineering across decades
Simple, durable engines establishing Renault's reputation for accessible motoring.
Long-running OHV four-cylinder that powered Renault's small cars with simple, durable design.
Versatile engine family used across mid-size Renault models with reliable performance.
Engine production years verified via Renault Product Reports and EU type-approval records
Authoritative data on Renault's global engine production, plant operations, and strategic partnerships. All figures sourced from Renault Group Annual Reports, Sustainability Reports, and EU industrial compliance records.
Renault manufactures engines at multiple facilities across Europe and beyond.
Renault produces over 300,000 engines per year. Note the steady decline in Diesel production due to Euro 6d regulations, while Hybrid and electric integration rises rapidly.
Note: Diesel production has declined steadily due to Euro 6d and WLTP regulations (Regulation (EC) No 715/2007). Hybrid and electric integration rising rapidly.
Strategic partnership since 1999. Engine sharing across the alliance includes K9K diesel, TCe petrol engines, and E-Tech technology.
K9K, TCe engines across brands
Engines built at shared facilities
Renault Group Strategic Partnerships – Alliance Collaboration
Shift in production reflects EU emissions policy and electrification strategy.
This aligns with Commission Regulation (EU) 2017/1151 (WLTP/RDE) and EU 2035 ICE phase-out roadmap.
Engine production years verified via Renault Product Reports and EU type-approval records
The most common questions about engine codes, what they mean, how to find them and how this database works
A Renault engine code (e.g., K9K, F4R, H5F) identifies the engine family, fuel type, displacement, and generation. Letter prefix indicates family (K = diesel, F = petrol, H = TCe petrol). Numbers indicate displacement and variant. Source: Renault Technical Documentation
Yes, but production is declining. The K9K dCi diesel engine is still used in some Clio and Captur models (2024 UK). However, Renault plans to phase out diesel by 2030 in line with EU emissions targets. Source: Regulation (EC) No 715/2007
The K9K 1.5 dCi is widely regarded as Renault's most reliable modern engine when maintained properly. The F4R 2.0 petrol is also durable. Avoid early 1.2 TCe engines due to oil consumption issues.
Most modern Renault engines use timing chains. The K9K diesel and newer TCe engines have chains. Some older F-series engines used belts requiring replacement every 120,000 km.
Yes, the K9K 1.5 dCi is generally very reliable with proper maintenance. Common issues include EGR valve clogging and DPF problems in urban driving. Regular oil changes critical for longevity.
On most Renault engines, the code is stamped on the front timing cover or on a label near the camshaft housing. Also check the V5C logbook under 'Engine Number'.
On the UK V5C registration document, look for the 'Engine Number' field (not VIN). This matches the engine code (e.g., K9K). If the engine was replaced, this may not reflect the current unit.
dCi (Diesel Common injection) = diesel engines with common rail injection. TCe (Turbo Control efficiency) = turbocharged petrol engines with direct injection. Both use turbocharging but different fuel types.
Yes. The engine code (e.g., K9K) is required for ordering correct parts (ECU, turbo, injectors). Using VIN alone can lead to errors. Always verify with the physical engine code.
Yes. High-performance engines (RS models) or engines with known issues (early 1.2 TCe) can increase premiums. Insurers use engine type to assess risk. Always declare correct engine code.
The K9K 1.5 dCi can last 200,000+ miles with proper maintenance. Regular oil changes every 12,000 miles critical. EGR and DPF maintenance important for urban drivers.
Newer TCe engines (H5F, H4J) are generally reliable. Early 1.2 TCe (H5F) had oil consumption issues. The 1.3 TCe (co-developed with Mercedes) is more robust. Always check service history.
Yes. Renault's E-Tech hybrid system is used in Clio E-Tech, Captur E-Tech, and Megane E-Tech. Combines petrol engine with electric motors for improved efficiency.
Yes, but must be declared to DVLA. Changing engine code may affect MoT, insurance, and emissions compliance. Ensure the replacement engine meets Euro emissions standards for your vehicle.
Dacia uses many Renault engines including K9K dCi, TCe petrol engines, and the 1.0 TCe. These are often detuned or simplified versions for cost-effective applications.
Positions 4–7 of the VIN indicate engine type. Use a Renault-specific VIN decoder for accurate information. The VIN is found on the windscreen, door jamb, or V5C.
Renault Zoe and other EVs are generally reliable. Battery degradation is the main concern (typically 10-15 years). Electric motors have fewer moving parts than ICE engines.
Renault typically recommends 5W-30 or 5W-40 fully synthetic oil meeting RN0700 or RN0710 specifications. Always check your owner's manual for the specific requirement for your engine code.
Use Renault Service Information or Renault Technical Documentation. Public data also available in EU type-approval documents and owner's manuals.
